Steam Clock Gastown Vancouver

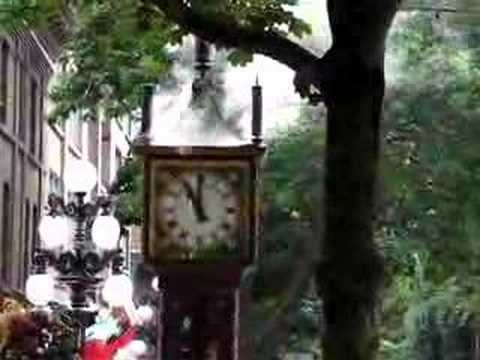

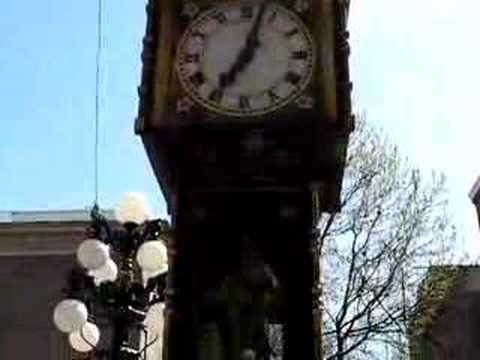

A working steam clock, one of only a few in the world, located in Vancouver's Victorian Gastown
Category Astounding Timepieces, Retro-Tech, Amazing Automata
Underneath Vancouver, Canada, there runs a series of steam pipes connected to a generating plant at Georgia and Beatty Streets. The system provides heat to most of the downtown core, and provides the steam for the whistles of the Gastown steam clock.
Despite seeming like a remnant of the Victorian era and being located in Vancouver's "Gastown" (which was the original townsite from which Vancouver grew from in the 1870s), the Steam Clock is actually from a hundred years later, built in 1977 by horologist Raymond Saunders.
Saunders was hired by Gastown's local merchants to build the clock as a monument. It also had an alternative purpose: Placed over a steam grate above one of the aforementioned pipes, it kept local homeless from sleeping on the warm spot. The clock is likely only the second steam clock ever constructed, the first having been built by Englishman John Inshaw in 1859, to draw customers to his tavern.
Because Inshaw's clock was small and very inaccurate as a time keeper Saunders had to reinvent the steam clock from scratch. The new clock proved to be finicky and hard to keep running and required additional funds to get it working properly.
Saying the clock is "steam-powered" is a bit of a misnomer, as the clockworks itself is powered by descending weights. The mini-steam engine at the base of the clock case takes up the role of the human "winder" by raising a series of ball weights and delivering the weights to the clock drive train. But the steam engine is connected by a rubber belt to an electric motor hidden from view - much more reliable than steam power.
Every quarter hour, the two-ton Steam Clock shows off a bit, whistling and shooting steam from its five whistles in version of the Westminster Chime. On the hour it marks each hour with a toot from each whistle.
There are six other working "Steam" Clocks in the world, the lesson was learned though only the whistles are steam and the clockworks are electric.
See an error? Know more? Edit this place.
- Website Gas companies
- Address Water Street , 300 block, Vancouver, Canada
Comments
-
Anonymous
January 30, 2010
According to wikipedia the clock is run on a Stuart #4 single expansion double acting 1" piston steam engine. -
Anonymous
January 30, 2010
Actually the tunnels run right underneath the steam clock in gas town. Again the author of this article does not have the facts straight. Seymour, "burnard" lol and nelson were not a part of the downtown core back when Vancouver was known as Granville. The tunnels run underneath cordova, water, cambie and maybe abbot. Child please. -
Anonymous
January 30, 2010
Sorry to spoil it for you but the steam clock does NOT run off of steam. Yes there are weight's...not that much different from a wind up clock! But the engine itself runs from electricity. Also the tunnels you speak of run under "Burrard st" Not Burnard as you mention in your article. Perhaps do a little homework before you mislead people and spell street names incorrectly.
